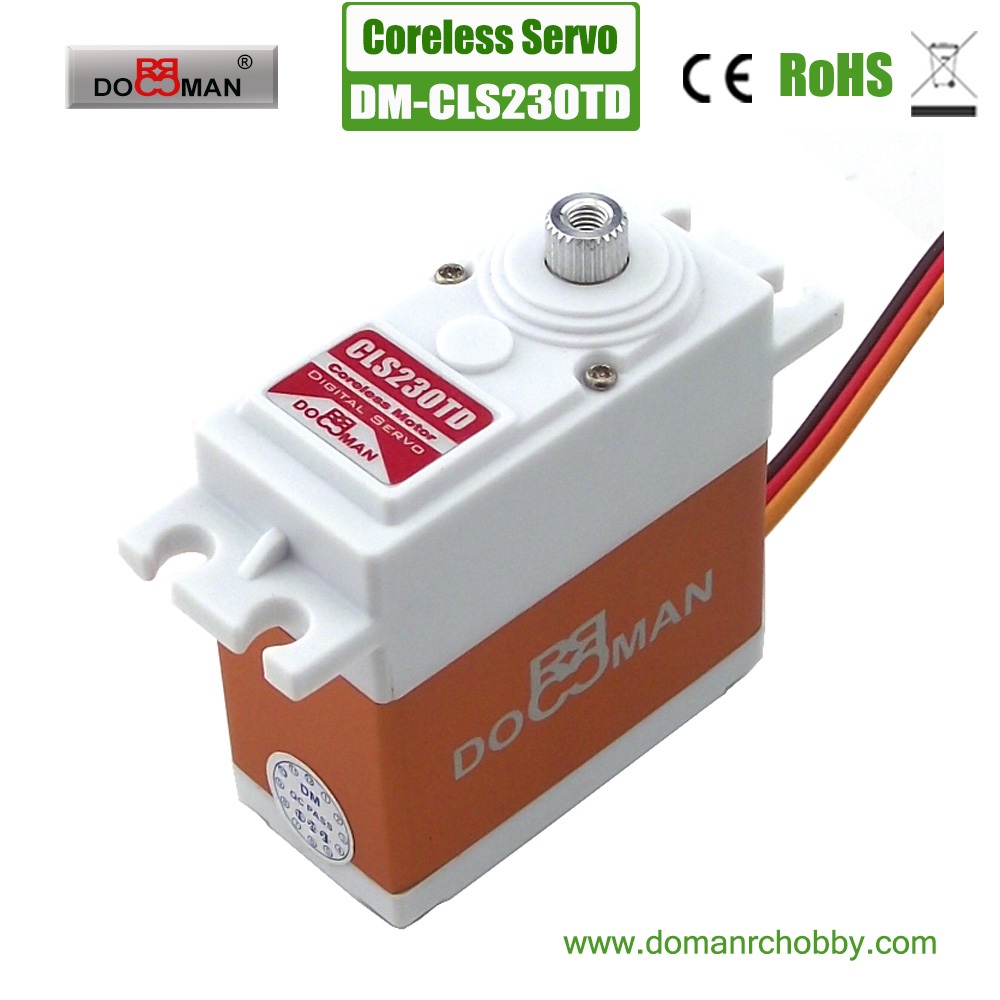

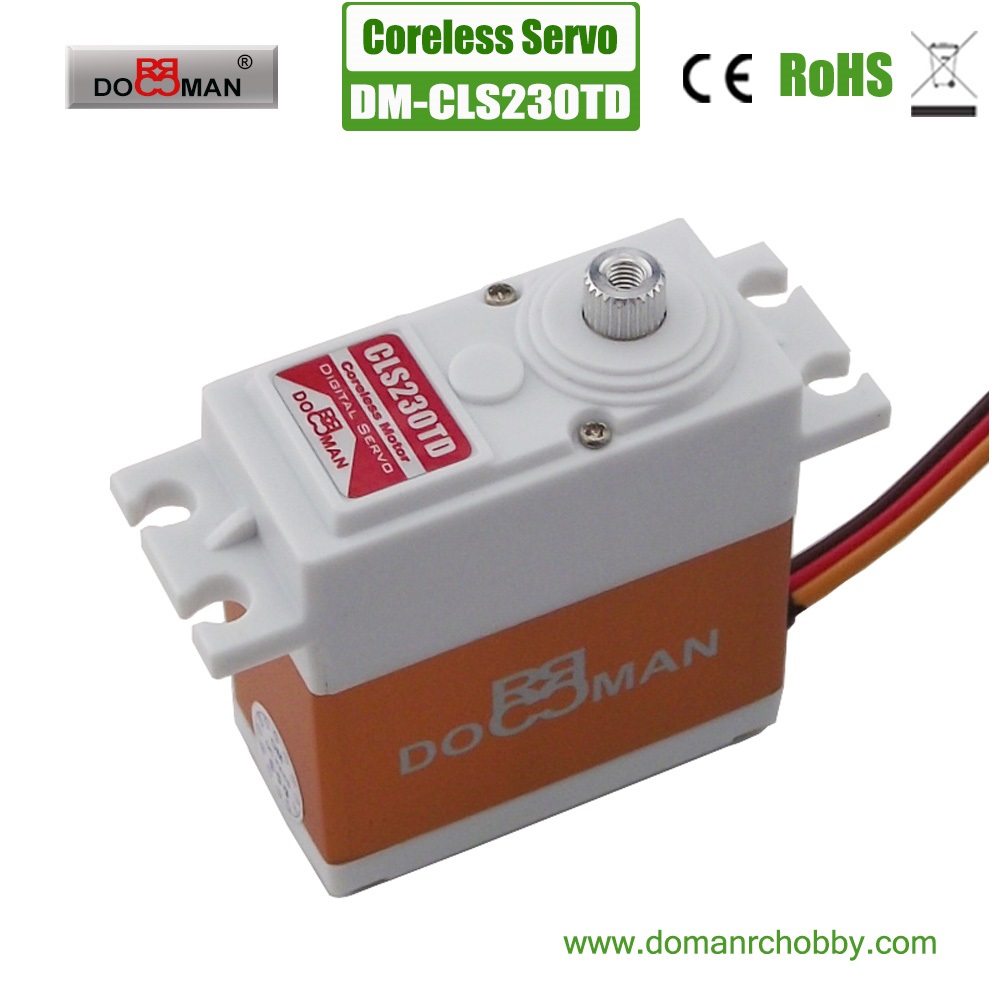

CLS230TD Titanium Gear HV 23kg Coreless Digital Servo

Item No.:DM-CLS230TD

Art No.:5433238

Brief: Titanium alloy gears,coreless motor,23kg digital servo,2 ball bearings,standard servo size, output shaft 25T

Application:rc car,rc plane,rc helicopter,robot








【Features】

High presicion Titanium alloy gears made by CNC;

Select coreless motor,could compare with import one;

1million life Potentiometer;

expert and experienced in circuit for 8 years;

TOP choice on case plastic,and best mold manufacture

Standard Size,Coreless,digital,Titanium gears,25T,2BB

Futaba,JR,SANWA,Hitec compatible.

Waterproof

Install with 6pcs screws to make sure it is strong enough,

Aluminium middle case for heatsink

【Specifications】

Item No. DM-CLS230TD

Operating Voltage: 6V~7.4V

Speed: 0.13 sec/60deg (6.0v)    0.11sec/60deg (7.4v)

Torque: 22.8kg.cm (6.0v)          23.5kg.cm (7.4v)

Size: 40mmX20mmX41mm

Rotation angle:180degree(PWM500-2500us)

Weight: 76gram

Motor: Coreless

Gear Train: Metal(Titanium alloy gear)

Ball Bearing: 2BB

Dead band width: 2usc

Interface: (JR)

Wire length: 30cm

Type: Digital,Aluminium heat sink,Coreless

【Notes】

*Please specify the plug(JR or Futaba connector),or we offer JR plug for you,for it is compatible.Futaba plug.
*Please do read the instruction before you install the servo.Rubber grommet must be used to reduce vibration when you install the servo on GP airplane,GP car or GP boat.
*Please choose suitable servo for you rc model.Torque overload will damage your servo.
*Keep the servo clean and away from dust,corrosive gas and humid air.
*Specification are subject to change without notice


【Packing include】

     1pcsXDM-CLS230TD  servo

     Accessaries:servo horns,rubber grommets, eyelets and mounting screws

         1 x double sided servo horn       1 x 4-arm servo horn    1 x 6-arm servo horn    1 x round servo disc
         4 x rubber grommets with brass inserts           4 x mounting screws
         1 x mounting bolt 3x 8mm for servo horn installation on the ball raced brass output shaft with 25T-spline drive
     GW: 87 g
