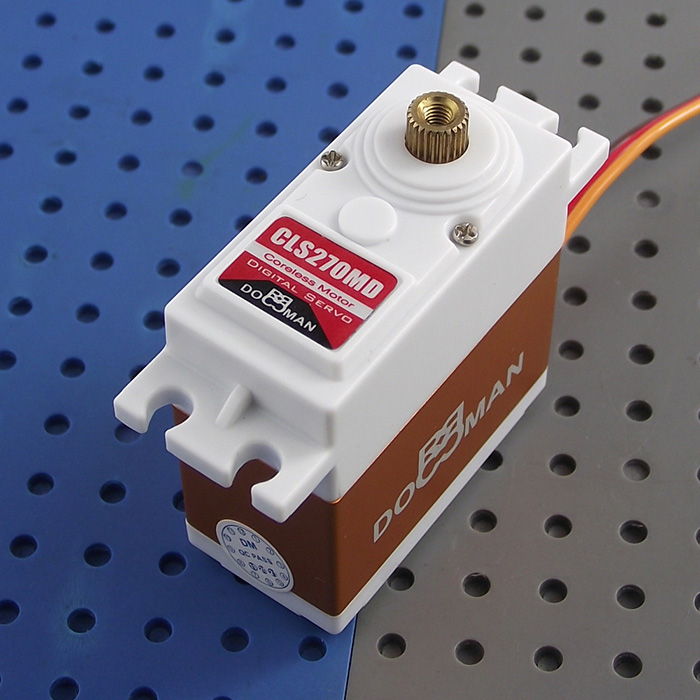

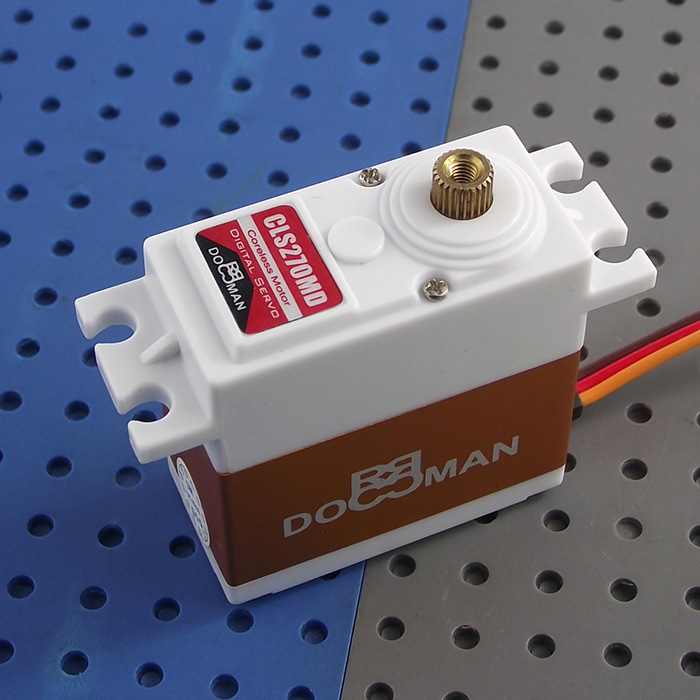

CLS270MD Metal Gear 27kg Coreless Digital Servo
Brief: metal gears,coreless motor,27kg digital servo,2 ball bearings,standard servo size, output shaft 25T
Application:rc car,rc plane,rc helicopter,robot
High presicion metal gears made by CNC;
Select coreless motor,could compare with import one;
1million life Potentiometer;
expert and experienced in circuit for 8 years;
TOP choice on case plastic,and best mold manufacture
Standard Size,Coreless,digital,Titanium gears,25T,2BB
Install with 6pcs screws to make sure it is strong enough,
Aluminium middle case for heatsink
Item No. DM-CLS270MD
Operating Voltage: 6V~7.4V
Speed: 0.14 sec/60deg (6.0v) 0.12sec/60deg (7.4v)
Torque: 25.5kg.cm (6.0v) 27.4kg.cm (7.4v)
Gear Train: Metal(copper gear)
Ball Bearing: 2BB
Dead band width: 2usc
Wire length: 30cm
Type: Digital,Aluminium heat sink,Coreless
*Please specify the plug(JR or Futaba connector),or we offer JR plug for you,for it is compatible.Futaba plug.
*Please do read the instruction before you install the servo.Rubber grommet must be used to reduce vibration when you install the servo on GP airplane,GP car or GP boat.
*Please choose suitable servo for you rc model.Torque overload will damage your servo.
*Keep the servo clean and away from dust,corrosive gas and humid air.
*Specification are subject to change without notice
Accessaries:servo horns,rubber grommets, eyelets and mounting screws
1 x double sided servo horn 1 x 4-arm servo horn 1 x 6-arm servo horn 1 x round servo disc
4 x rubber grommets with brass inserts 4 x mounting screws
1 x mounting bolt 3x 8mm for servo horn installation on the ball raced brass output shaft with 25T-spline drive
GW: 87 g
