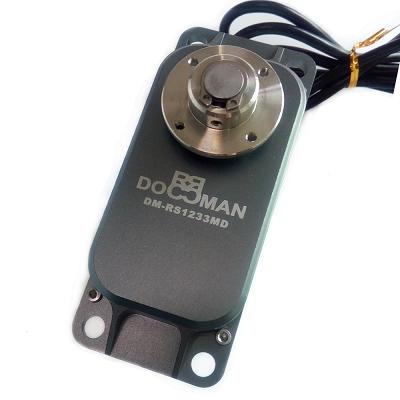

RS1233MD Magnetic Induction 400kg Digital Servo

Item No.:DM-RS1233MD

Art No.:5875404

Brief: metal gears,Magnetic Induction,400kg digital servo,2 ball bearings,Seiko SSPS-105 size,

Application:Robotics;UAV platformAutomation and so on;



<>High presicion stainless steel metal gears;

<>Select motor,Seiko Servo Motor SSPS-105 same size;

<>Magnetic Induction long life Potentiometer;

<>expert and experienced in circuit for 8 years;

<>CNC Aluminium case

<>Futaba,JR,SANWA,Hitec compatible.

The Special Characters:

<>It is a non-contact and wear-free magnetic encoder,so it will be with especially long life,the servo life will not be suject to the potentiometer's life;

<>non-contact and wear-free magnetic encoder goes with high linearity, high accuracy, high reliability,this make the position feedback smoothly,so if it used on the platform,it will be stepless, this completely solve the problem of multistep by traditional potentiometer;

<>Because there is no block in the gear and the potentiometer,so it can rotate 360degree,and if the output shaft runs beyond the limit,this could also avoid and reduced damage to the potentiometer and gear set;

<>magnetic encoder could go to any point of 360degree,which break through the angle limit of traditional potentiometer,this makes your product running 360degree freely and no dead angle;



【Specifications】

Item No. DM-RS1233MD110038.jpg

Operating Voltage: 12V~24V

Speed: 0.64 sec/60deg (6.0v)    0.37sec/60deg (7.4v)

Torque: 200kg.cm (12.0v)          400kg.cm (24v)

Rotation angle:300degree(PWM800-2200us)

Size: 100mmX55mmX116mm

Weight: 765gram

Gear Train: Metal

Ball Bearing: 2BB

Dead band width: 2usc

Interface: (JR)

Wire length: 13cm

Type: Digital,Aluminium heat sink,Magnetic Induction

【Notes】

*Please specify the plug(JR or Futaba connector),or we offer JR plug for you,for it is compatible.Futaba plug.
*Please do read the instruction before you install the servo.Rubber grommet must be used to reduce vibration when you install the servo on GP airplane,GP car or GP boat.
*Please choose suitable servo for you rc model.Torque overload will damage your servo.
*Keep the servo clean and away from dust,corrosive gas and humid air.
*Specification are subject to change without notice

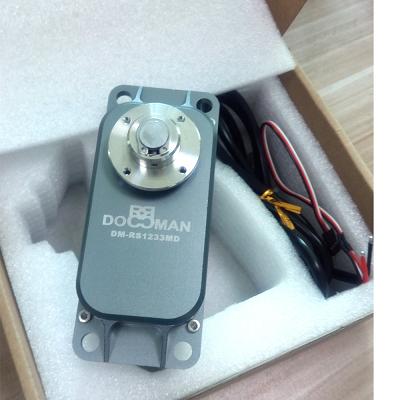

【Packing include】DM-RS1233MD-008.jpg

     1pcsXDM-RS1233MD  servo

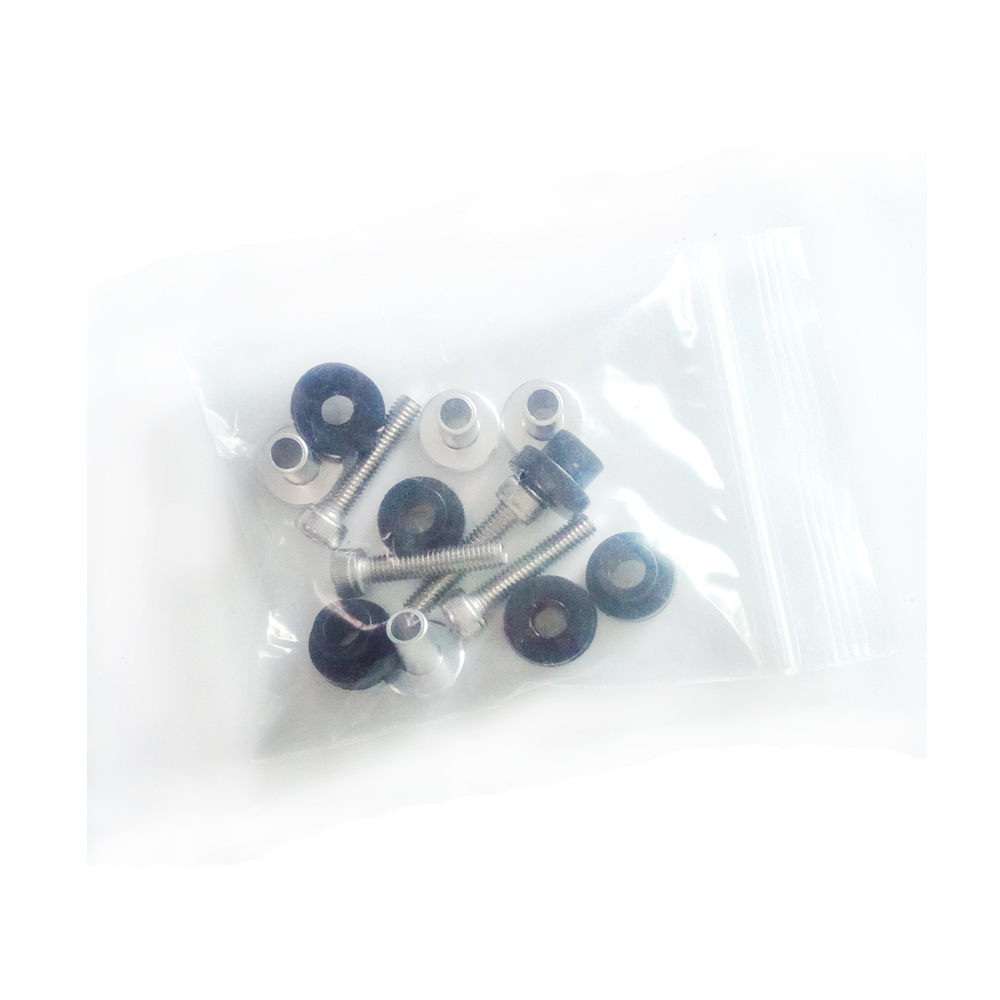

     Accessaries:servo horns,rubber grommets, eyelets and mounting screws

     GW: 890 g
