S1250MD metal gear 25g digital servo

DM-S1250MDX.jpgItem No.:DM-S1250MD

Art No.:5332261

Brief: metal gears,25g digital servo

Application: for 450 rc helicopter,rc plane and so on









【Features】

High presicion CNC metal gears;

Select torque coreless motor,could compare with import one;

long life Potentiometer;

expert and experienced in circuit for 8 years;

TOP choice on case plastic,and best mold manufacture

Futaba,JR,SANWA,Hitec compatible.

【Specifications】

Item No. DM-S1250MD25gjian.jpg

Operating Voltage: 4.8V~6V

Speed: 0.12 sec/60deg (4.8v)    0.10sec/60deg (6v)

Torque: 4.5kg.cm (4.8v)          5.5kg.cm (6v)

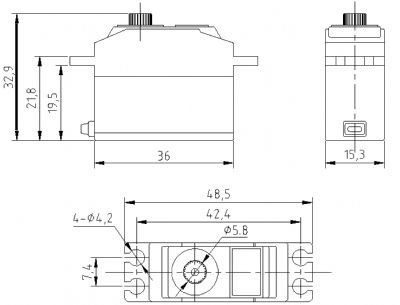

Size: 36mmX15.3mmX29mm

Weight: 25gram

Motor: Coreless motor

Gear Train: metal(titanium alloy gear)

Ball Bearing: 2BB

Dead band width: 2usc

Interface: (JR)

Wire length: 25cm

Type: DIGITAL,

Rotation angle:110degree(PWM900-2100us)

Important Notes

*Please specify the plug(JR or Futaba connector),or we offer JR plug for you,for it is compatible.Futaba plug.
*Please do read the instruction before you install the servo.Rubber grommet must be used to reduce vibration when you install the servo on GP airplane,GP car or GP boat.
*Please choose suitable servo for you rc model.Torque overload will damage your servo.
*Keep the servo clean and away from dust,corrosive gas and humid air.
*Specification are subject to change without notice

【Packing include】DM-S0250DX05.jpg

     1pcsXDM-S1250MD  servo

     Accessaries:servo horns,and mounting screws

         1 x double sided servo horn;  1 x 4-arm servo horn ; 1 x 6-arm servo horn
         1 x round servo disc;  4 x rubber grommets with brass inserts ;
         4 x mounting screws ;
         1 x mounting bolt 3 x 8 mm for servo horn installation on the ball raced brass output shaft with 25-spline drive

GW: 35 g
